Vercel AI SDK with Upstash Vector - Upstash Documentation

The AI SDK is a TypeScript toolkit designed to help developers build AI-powered applications using React, Next.js, Vue, Svelte, Node.js, and more. Upstash Vector integrates with the AI SDK to provide AI applications with the benefits of vector databases, enabling applications to perform semantic search and RAG (Retrieval-Augmented Generation). In this guide, we’ll build a RAG chatbot using the AI SDK. This chatbot will be able to both store and retrieve information from a knowledge base. We’ll use Upstash Vector as our vector database, and the OpenAI API to generate responses.

Prerequisites

Before getting started, make sure you have:

An Upstash account (to upsert and query data)
An OpenAI API key (to generate responses and embeddings)

Setup and Installation

We will start by bootstrapping a Next.js application with the following command:

npx create-next-app rag-chatbot --typescript
cd rag-chatbot

Next, we will install the required packages using the following command:

npm install @ai-sdk/openai ai zod @upstash/vector

pnpm install @ai-sdk/openai ai zod @upstash/vector

bun install @ai-sdk/openai ai zod @upstash/vector

We need to set the following environment variables in our .env file:

OPENAI_API_KEY=your_openai_api_key
UPSTASH_VECTOR_REST_URL=your_upstash_url
UPSTASH_VECTOR_REST_TOKEN=your_upstash_token

You can get your Upstash credentials after creating a Vector Index in the Upstash Console.

If you are going to use Upstash hosted embedding models, you should select one of the available options when creating your index. If you are going to use custom embedding models, you should specify the dimensions of your embedding model.

Implementation

RAG (Retrieval-Augmented Generation) is the process of enabling the model to respond with information outside of its training data by embedding a user’s query, retrieving the relevant source material (chunks) with the highest semantic similarity, and then passing them alongside the initial query as context. Let’s consider a simple example. Initially, a chatbot doesn’t know who your favorite basketball player is. During a conversation, I inform the chatbot that my favorite player is Alperen Sengun, and it stores this information in its knowledge base. Later, in another conversation, when I ask, “Who is my favorite basketball player?” the chatbot retrieves this information from the knowledge base and responds with “Alperen Sengun.”

Chunking + Embedding Logic

Embeddings are a way to represent the semantic meaning of words and phrases. The larger the input to your embedding, the lower the quality the embedding will be. So, how should we approach long inputs? One approach would be to use chunking. Chunking refers to the process of breaking down a particular source material into smaller pieces. Once your source material is appropriately chunked, you can embed each one and then store the embedding and the chunk together in a database (Upstash Vector in our case). Using Upstash Vector, you can upsert embeddings generated from a custom embedding model, or you can directly upsert data, and Upstash Vector will generate embeddings for you. In this guide, we demonstrate both methods—using Upstash-hosted embedding models and using a custom embedding model (e.g., OpenAI).

Using Upstash Hosted Embedding Models

lib/ai/upstashVector.ts

import { Index } from '@upstash/vector'

// Configure Upstash Vector client
// Make sure UPSTASH_VECTOR_REST_URL and UPSTASH_VECTOR_REST_TOKEN are in your .env
const index = new Index({
  url: process.env.UPSTASH_VECTOR_REST_URL!,
  token: process.env.UPSTASH_VECTOR_REST_TOKEN!,
})

// Chunking logic: split on period
function generateChunks(input: string): string[] {
  return input
    .trim()
    .split('.')
    .filter(i => i !== '')
}

// Upsert
export async function upsertEmbedding(resourceId: string, content: string) {
  const chunks = generateChunks(content)

  // Convert each chunk into an Upstash upsert object
  const toUpsert = chunks.map((chunk, i) => ({
    id: `${resourceId}-${i}`,
    data: chunk, // Using the data field instead of vector because embeddings are generated by Upstash
    metadata: {
      resourceId,
      content: chunk, // Store the chunk as metadata to use during response generation
    },
  }))

  await index.upsert(toUpsert)
}

// Query
export async function findRelevantContent(query: string, k = 4) {
  const result = await index.query({
    data: query, // Again, using the data field instead of vector field
    topK: k,
    includeMetadata: true, // Fetch metadata as well
  })

  return result
}

So, in this file, we create a function to upsert data into our index, and another function to query our index. While upserting data, we chunk the content into smaller pieces and store those chunks in our index. This approach is a lot simpler compared to using a custom embedding model, because we don’t need to generate embeddings ourselves, Upstash does it for us.

Using a Custom Embedding Model

Now, let’s look at how we can use a custom embedding model. We will use OpenAI’s text-embedding-ada-002 embedding model.

lib/ai/upstashVector.ts

import { Index } from '@upstash/vector'
import { embed, embedMany } from 'ai'
import { openai } from '@ai-sdk/openai'

// Configure Upstash Vector client
const index = new Index({
  url: process.env.UPSTASH_VECTOR_REST_URL!,
  token: process.env.UPSTASH_VECTOR_REST_TOKEN!,
})

// Chunking logic: split on period
function generateChunks(input: string): string[] {
  return input
    .trim()
    .split('.')
    .filter(i => i !== '')
}

// Define the embedding model
const embeddingModel = openai.embedding('text-embedding-ada-002')

// Function to generate a single embedding
async function generateEmbedding(value: string): Promise<number[]> {
  const input = value.replaceAll('\\n', ' ')
  const { embedding } = await embed({
    model: embeddingModel,
    value: input,
  })
  return embedding
}

// Function to generate embeddings for multiple chunks
async function generateEmbeddings(
  value: string,
): Promise<Array<{ content: string; embedding: number[] }>> {
  const chunks = generateChunks(value)
  const { embeddings } = await embedMany({
    model: embeddingModel,
    values: chunks,
  })
  return embeddings.map((vector, i) => ({
    content: chunks[i],
    embedding: vector,
  }))
}

// Upsert
export async function upsertEmbeddings(resourceId: string, content: string) {
  // Generate embeddings for each chunk
  const chunkEmbeddings = await generateEmbeddings(content)
  // Convert each chunk into an Upstash upsert object
  const toUpsert = chunkEmbeddings.map((chunk, i) => ({
    id: `${resourceId}-${i}`, // e.g. "abc123-0"
    vector: chunk.embedding,
    metadata: {
      resourceId,
      content: chunk.content,
    },
  }))

  await index.upsert(toUpsert)
}

// Query
export async function findRelevantContent(query: string, k = 4) {
  const userEmbedding = await generateEmbedding(query)
  const result = await index.query({
    vector: userEmbedding,
    topK: k,
    includeMetadata: true,
  })

  return result
}

In this approach, we need to generate embeddings ourselves, which is an extra step. But the advantage is that we can use any embedding model we want. OpenAI’s text-embedding-ada-002 generates embeddings with 1536 dimensions, so the index we created must have 1536 dimensions.

Create Resource Server Action

We will create a server action to create a new resource and upsert it to the index. This will be used by our chatbot to store information.

lib/actions/resources.ts

'use server'

import { z } from 'zod'
import { upsertEmbeddings } from '@/lib/ai/upstashVector'

// A simple schema for incoming resource content
const NewResourceSchema = z.object({
  content: z.string().min(1),
})

// Server action to parse the input and upsert to the index
export async function createResource(input: { content: string }) {
  const { content } = NewResourceSchema.parse(input)

  // Generate a random ID
  const resourceId = crypto.randomUUID()

  // Upsert the chunks/embeddings to Upstash Vector
  await upsertEmbeddings(resourceId, content)

  return `Resource ${resourceId} created and embedded.`
}

Chat API route

This route will act as the “backend” for our chatbot. The Vercel AI SDK’s useChat hook will, by default, POST to /api/chat with the conversation state. We’ll define that route and specify the AI model, system instructions, and any tools we’d like the model to use.

app/api/chat/route.ts

import { openai } from '@ai-sdk/openai'
import { streamText, tool } from 'ai'
import { z } from 'zod'

// Tools
import { createResource } from '@/lib/actions/resources'
import { findRelevantContent } from '@/lib/ai/upstashVector'

// Allow streaming responses up to 30 seconds
export const maxDuration = 30

export async function POST(req: Request) {
  const { messages } = await req.json()

  const result = streamText({
    // 1. Choose your AI model
    model: openai('gpt-4o'),

    // 2. Pass along the conversation messages from the user
    messages,

    // 3. Prompt the model
    system: `You are a helpful RAG assistant.
    You have the ability to add and retrieve content from your knowledge base.
    Only respond to the user with information found in your knowledge base.
    If no relevant information is found, respond with: "Sorry, I don't know."`,

    // 4. Provide your "tools": resource creation & retrieving content
    tools: {
      addResource: tool({
        description: `Add new content to the knowledge base.`,
        parameters: z.object({
          content: z.string().describe('The content to embed and store'),
        }),
        execute: async ({ content }) => {
          const msg = await createResource({ content })
          return msg
        },
      }),
      getInformation: tool({
        description: `Retrieve relevant knowledge from your knowledge base to answer user queries.`,
        parameters: z.object({
          question: z.string().describe('The question to search for'),
        }),
        execute: async ({ question }) => {
          const hits = await findRelevantContent(question)
          // Return array of metadata for each chunk
          // e.g. [{ id, score, metadata: { resourceId, content }}, ... ]
          return hits
        },
      }),
    },
  })

  // 5. Return the streaming response
  return result.toDataStreamResponse()
}

Chat UI

Finally, we will implement our chat UI on the home page. We will use the Vercel AI SDK’s useChat hook to render the chat UI. By default, the Vercel AI SDK will POST to /api/chat on submit.

app/page.tsx

'use client'

import { useChat } from 'ai/react'

export default function Home() {
  // This hook handles message state + streaming from /api/chat
  const { messages, input, handleInputChange, handleSubmit } = useChat({
    // You can enable multi-step calls if you want the model to call multiple tools in one session
    maxSteps: 3,
  })

  return (
    <div className="mx-auto max-w-md py-6">
      <h1 className="text-xl font-bold mb-4">RAG Chatbot with Upstash Vector</h1>

      {/* Render messages */}
      <div className="space-y-2 mb-8">
        {messages.map(m => (
          <div key={m.id} className="border p-2 rounded">
            <strong>{m.role}:</strong>
            <div>
              {/* If the model calls a tool, show which tool it called */}
              {m.content.length > 0 ? (
                m.content
              ) : (
                <i>calling tool: {m?.toolInvocations?.[0]?.toolName}</i>
              )}
            </div>
          </div>
        ))}
      </div>

      {/* Text input */}
      <form onSubmit={handleSubmit} className="flex gap-2">
        <input
          className="flex-1 border rounded px-2 py-1"
          placeholder="Say something..."
          value={input}
          onChange={handleInputChange}
        />
        <button className="px-4 py-1 bg-black text-white rounded" type="submit">
          Send
        </button>
      </form>
    </div>
  )
}

Run the Chatbot

Now, we can run our chatbot with the following command:

npm run dev

Here is a screenshot of the chatbot in action:

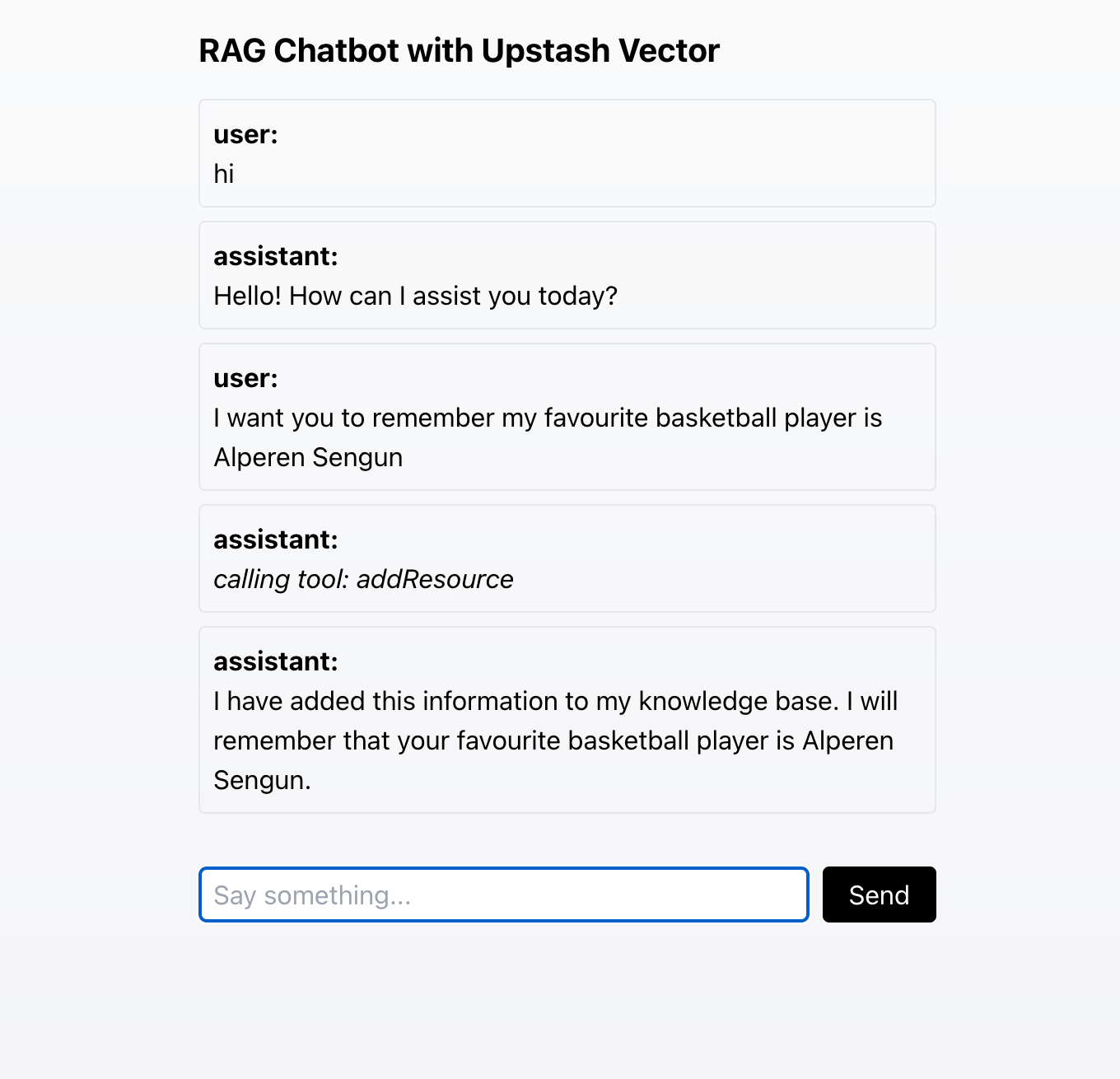

Adding information to the knowledge base

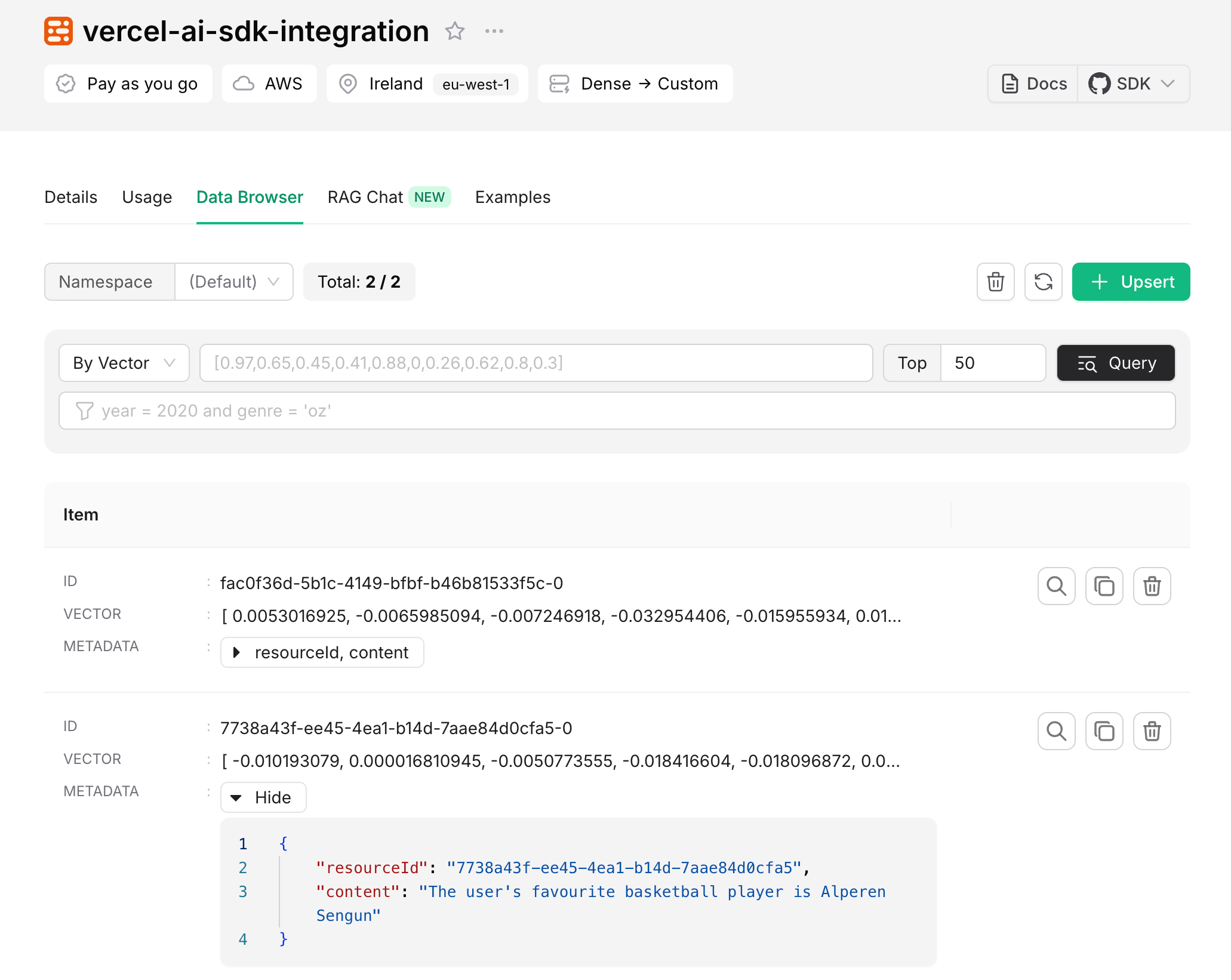

Added information can be seen in Upstash Console

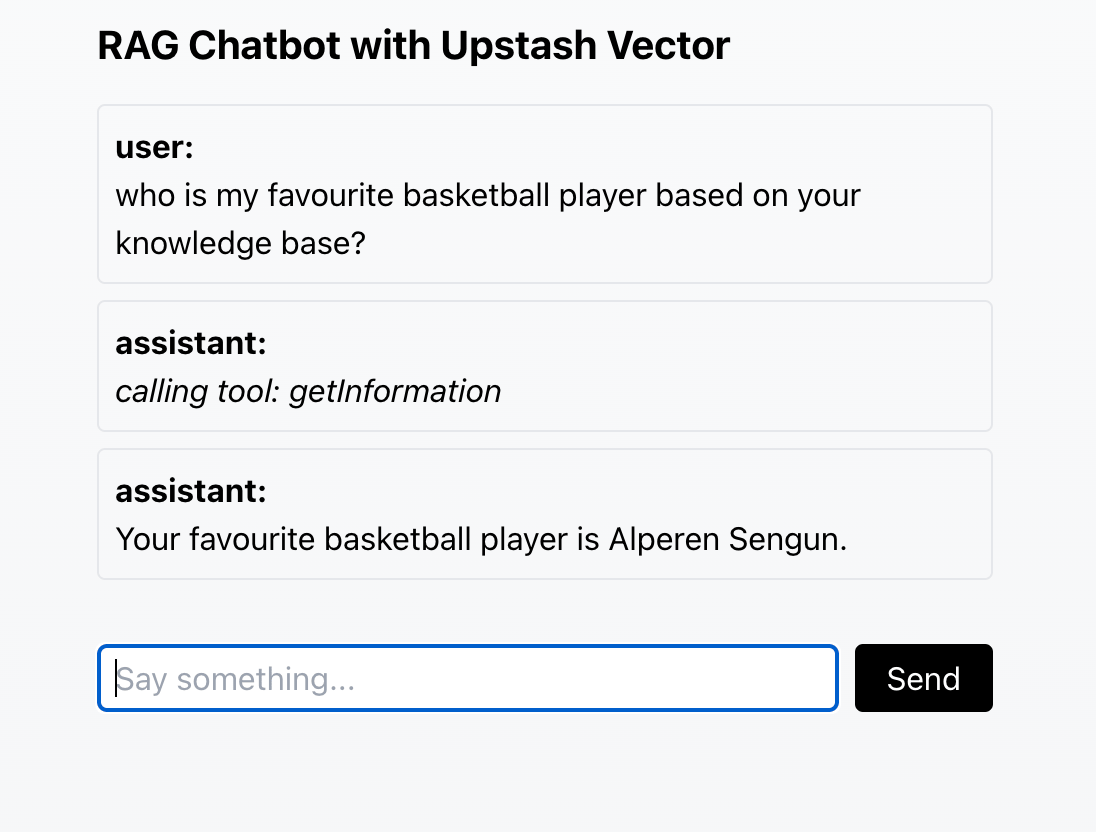

Retrieving information from the knowledge base in another conversation

If you would like to see the entire code of a slightly revised version of this chatbot, you can check out the GitHub repository. In this version, the user chooses which embedding model to use through the UI.

Conclusion

Congratulations! You have successfully created a RAG chatbot that uses Upstash Vector to store and retrieve information. To learn more about Upstash Vector, please visit the Upstash Vector documentation. To learn more about the AI SDK, visit the Vercel AI SDK documentation. While creating this tutorial, we used the RAG Chatbot guide created by Vercel, which uses PostgreSQL with pgvector as a vector database. Make sure to check it out if you want to learn how to create a RAG chatbot using pgvector.
